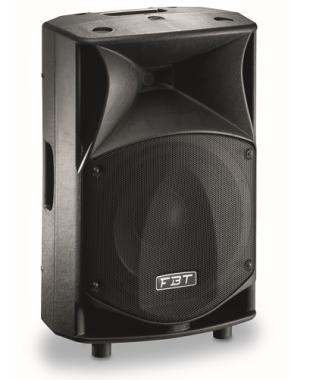

Cassa attiva 900w cono da 14" driver 1x1.4" Biamp 700w su woofer 200w Alti 132dB pressione sonora.
-
- 2-way, bi-amplified bass reflex design cabinet
- 700W RMS LF, 200W RMS HF, Class D power amplifiers with switch mode power supply
- DSP with 4-EQ presets
- Control panel with: XLR IN and XLR LINK, Volume, EQ presets, HP filter, GND LFT switch
- 2 x M10 suspension points, 35mm (1.3/8”) top-hat speaker stand socket, wall bracket mount flange plate
- 90°H x 60°V constant directivity horn
- Stage monitor angling facility with 12°, 40° or 55° taper
- Configuration: 2 vie
- Built-in amplifier LF/HF: 700/200 W RMS
- Built-in amplifier peak LF/HF: 1400/400 W
- Frequency response: 45Hz - 20KHz -6dB
- Low Frequency woofer: 14 - 2.5 coil mm
- High Frequency driver: 1 - 1.4 coil mm
- Maximum SPL cont/peak: 126 / 132 dB
- Dispersion: 90° x 60° HxV
- Input impedance: 22 Kohm
- Crossover Frequency: 1.6 KHz
- AC Power requirements: 640 VA
- Input connector: XLR with loop, Jack 6.3mm
- Power cord: 5 16,4 m
- Net Dimension (WxHxD): 402x644x345 15,8x25,4x13,6 mm
- Net Weight: 14 Kg
- Transport Dimension (WxHxD): 500x745x440 19,7x29,3x17,3 mm
- Transport Weight: 16.6 36.6 Kg
-
